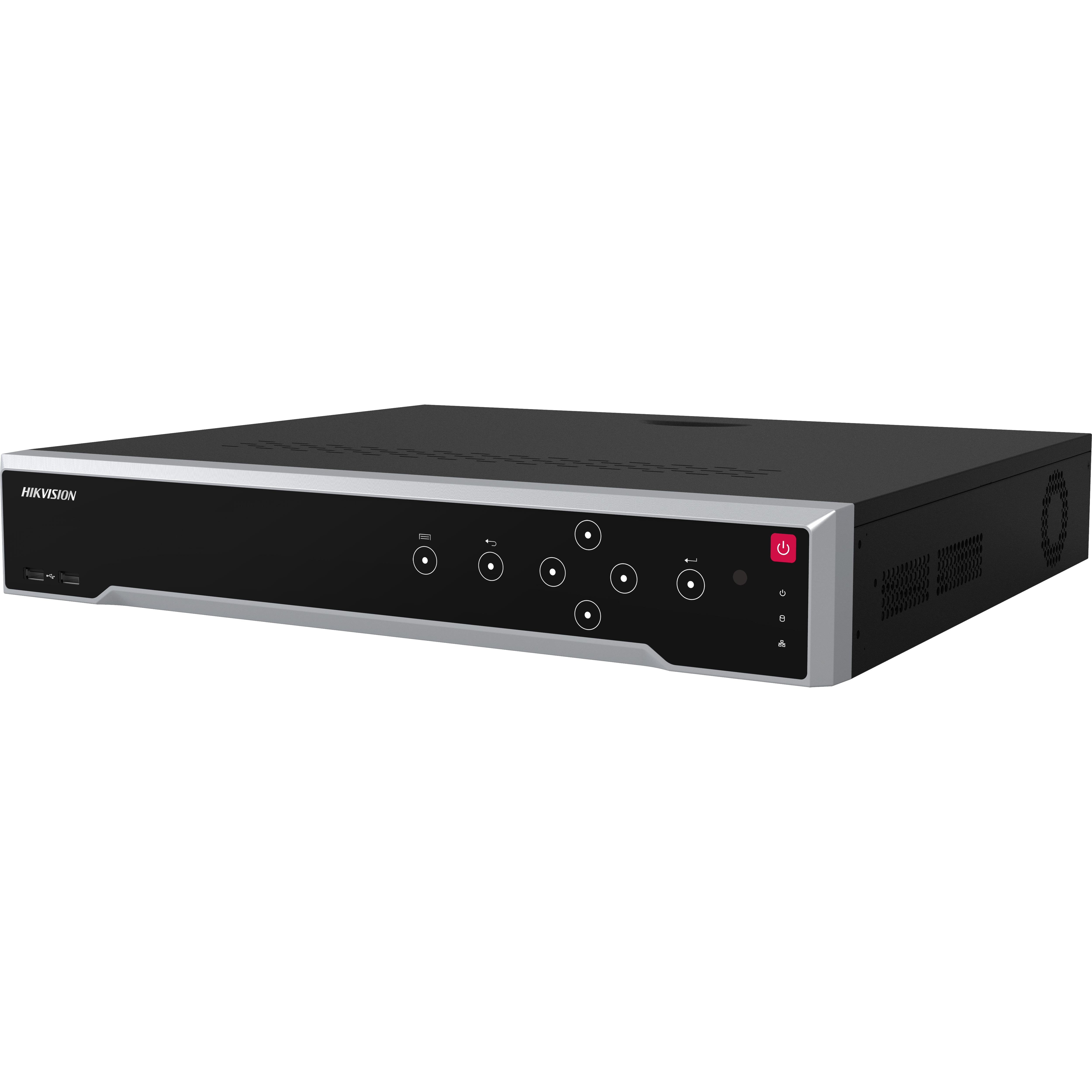

Hikvision DS-7764NI-M4 64-Channel 8K NVR (4 SATA) | 64-ch IP | 400 Mbps Incoming | 4 SATA | Up to 16TB per HDD | 8K HDMI

Hikvision 64-ch 1.5U 8K NVR. H.265+/H.265/H.264+/H.264 video formats; up to 64-ch IP camera inputs; up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity.

Key Specifications

• H.265+/H.265/H.264+/H.264 video formats
• Up to 64-ch IP camera inputs
• Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
• Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
• 2 HDMI and 1 VGA interfaces, 8K or dual 4K video outputs
• Up to 8-ch IP speakers can be connected
• IP video input: 64-ch Up to 32 MP resolution
• Incoming bandwidth: 400 Mbps
• Outgoing bandwidth: 400 Mbps
• HDMI 1 output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × …
• VGA output: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Output mode: HDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output
• Recording resolution: 32 MP/24 MP/16MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Decoding capability: 2-ch@32 MP (30 fps); 3-ch@24 MP (30 fps); 4-ch@16MP (30 fps); 6-ch@12MP (30 fps);10-ch@8 MP (30 fps); 13-ch@6 MP (30 fps);16-ch@5 MP (30 fps);20-ch@4 MP (30 …
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• SATA: 4 SATA interfaces
• eSATA: 1 eSATA interface
• HDD capacity: Up to 16 TB capacity for each disk
• Alarm in/out: 16/9
• USB: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Power supply: 100 to 240 VAC, 50 to 60 Hz
• Power consumption: ≤ 15 W (without HDD)

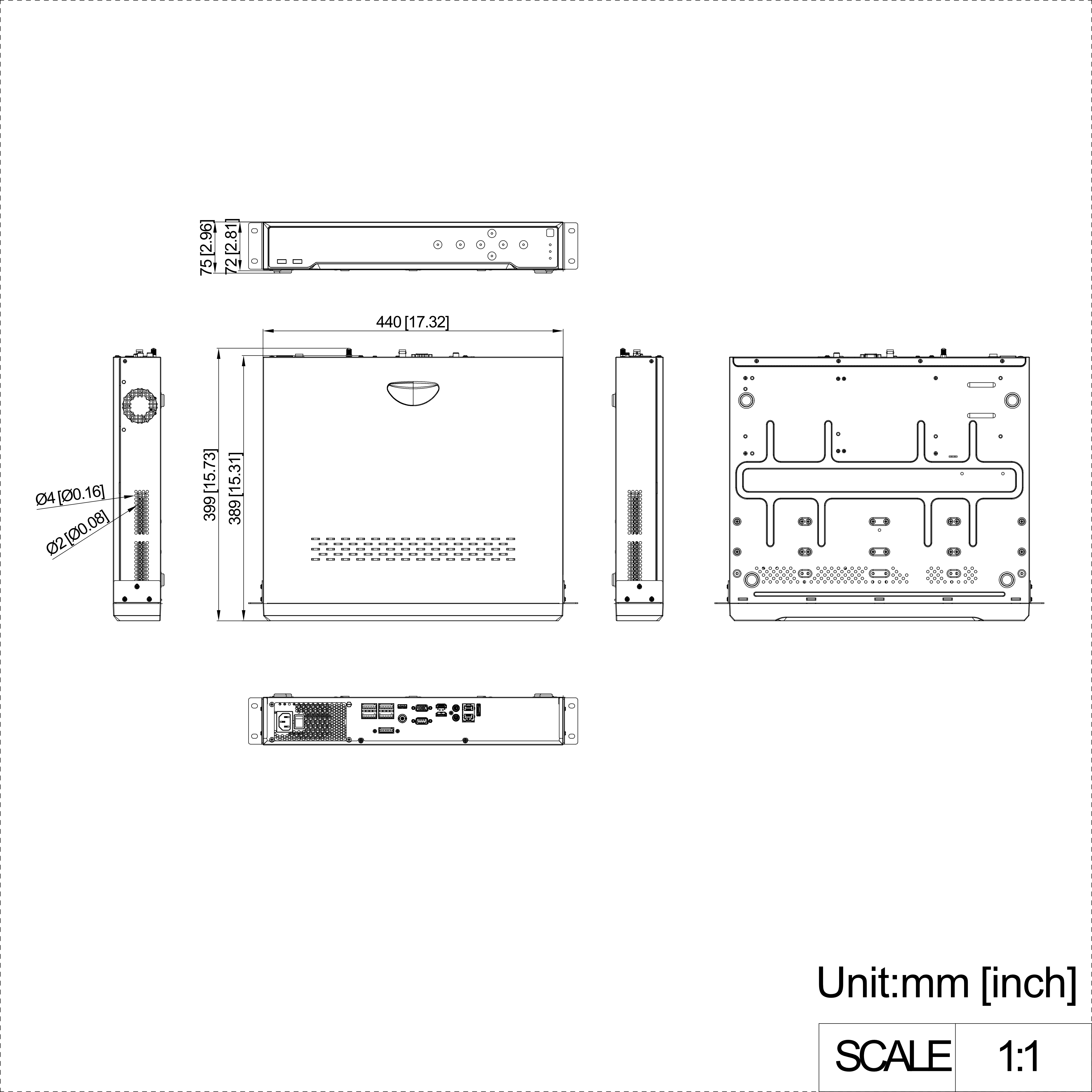

• Dimensions: 445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0")
