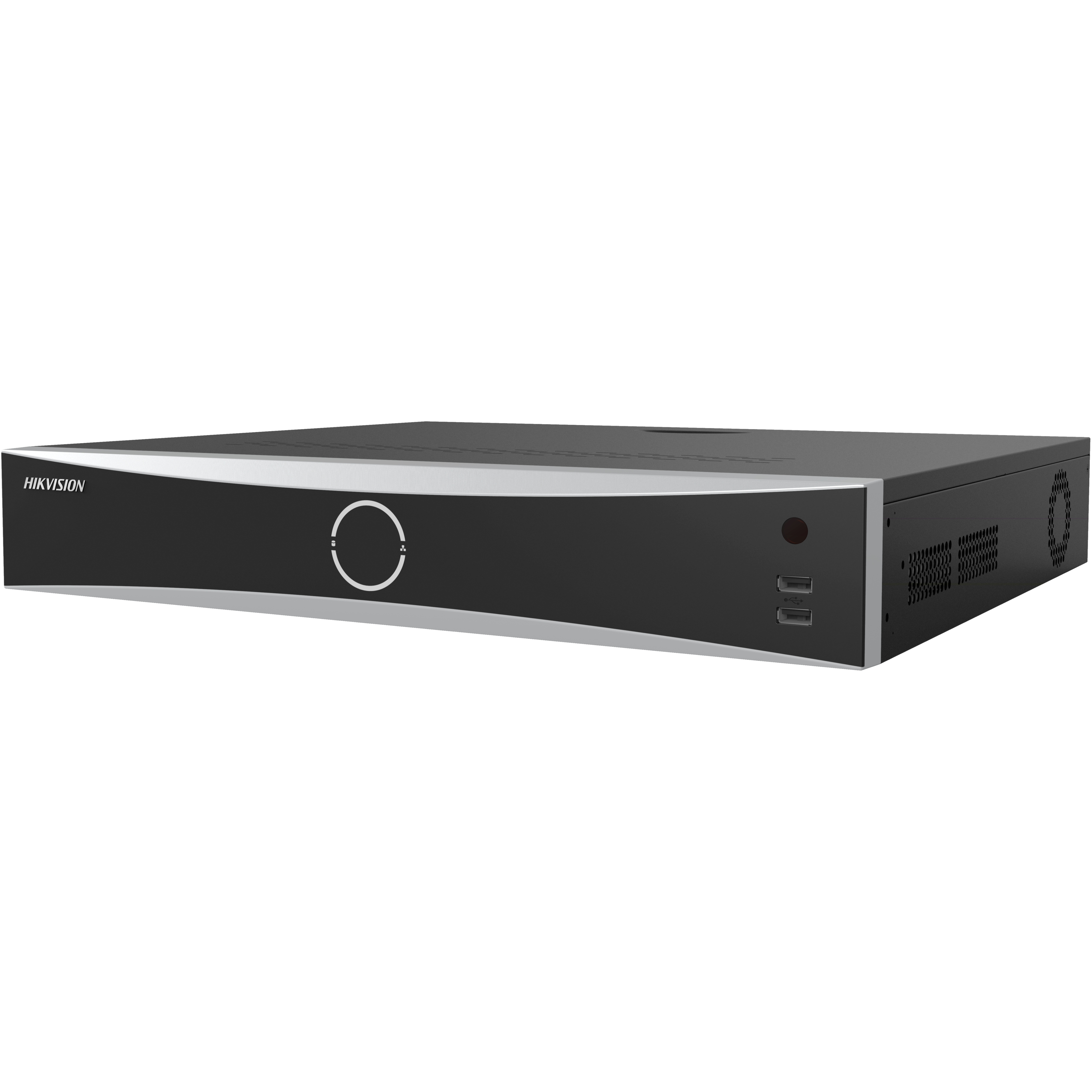

Hikvision DS-7732NXI-I4/S 32-Channel AcuSense Pro NVR (4 SATA) | 16-ch IP | 160 Mbps Incoming | 4 SATA | Up to 10TB per HDD | 4K HDMI | AcuSense AI

Hikvision 32-ch 1U AcuSense 4K NVR. H.265+/H.265/H.264+/H.264 video formats; intelligent analytics based on deep learning algorithm; up to 4-ch perimeter protection.

Key Specifications

• H.265+/H.265/H.264+/H.264 video formats
• Intelligent analytics based on deep learning algorithm
• Up to 4-ch perimeter protection
• Up to 4-ch facial recognition for video stream
• Up to 8-ch facial recognition for face picture
• Up to 32-ch IP camera inputs
• Up to 32-ch 1080p decoding capability
• Up to 8-ch IP speakers can be connected
• IP video input: 16-ch Up to 12 MP resolution
• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 256 Mbps
• Facial detection: Face picture comparison, human face capture, face picture search
• HDMI 1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, HDMI1/VGA simultaneous output
• VGA output: 1-ch, 1920 × 1080/60Hz, HDMI1/VGA simultaneous output
• Output mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
• Recording resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
• Decoding capability: 16-ch @ 1080p (30 fps)
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Network interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• SATA: 4 SATA interfaces supporting hot-plug
• eSATA: 1 eSATA interface
• HDD capacity: Up to 10 TB capacity for each disk
• Alarm in/out: 16/4
• USB: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Power supply: 100 to 240 VAC, 50 to 60 Hz
• Power consumption: ≤ 30 W (without HDD)

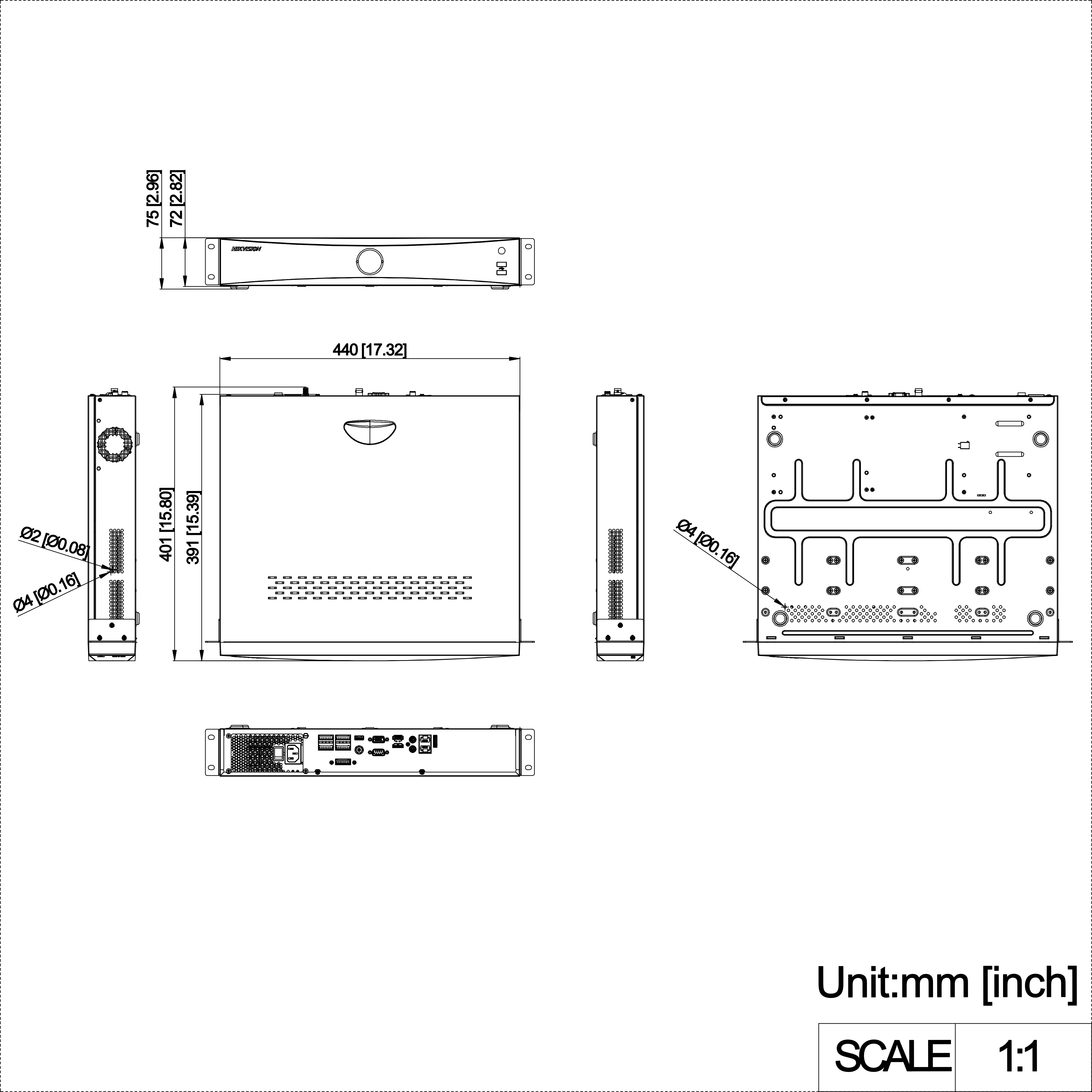

• Dimensions: 445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")
