Hikvision DS-7716NXI-K4(E) 16-Channel K Series AcuSense NVR (4 SATA) | 16-ch IP | 160 Mbps Incoming | 4 SATA | Up to 16TB per HDD | 4K HDMI | AcuSense AI

Hikvision 16-ch 1.5U K Series AcuSense 4K NVR. Automatic speed control fans are designed for running quietly and energy saving; adopt Hikvision AcuSense technology to minimize manual effort and security costs; efficient playback with AcuSearch technology.

Key Specifications

• Automatic speed control fans are designed for running quietly and energy saving
• Adopt Hikvision AcuSense technology to minimize manual effort and security costs
• Efficient playback with AcuSearch technology
• Accurate perimeter protection effectively reduces false alarms
• Automatic cameras connection and configuration
• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 3-ch@12 MP or 5-ch@8 MP or 10-ch@4 MP or 16-ch@2 MP decoding capacity
• IP video input: 16-ch
• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 160 Mbps
• Facial detection: Face picture comparison, human face capture, face picture search
• HDMI output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA output: 1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Output mode: HDMI/VGA independent output
• Recording resolution: 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Decoding capability: AI on: 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 5-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 10-channel 3 MP@30fps, 16-channel 2 MP@30fps AI off: 3-channel 12 …
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )
• Network interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• SATA: 4 SATA interfaces
• eSATA: 1 eSATA interface;NA
• HDD capacity: Up to 16 TB capacity for each HDD
• Alarm in/out: 16/9;16/4
• USB: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Power supply: 100 to 240 VAC, 50 to 60Hz
• Power consumption: ≤ 50 W (without HDD)

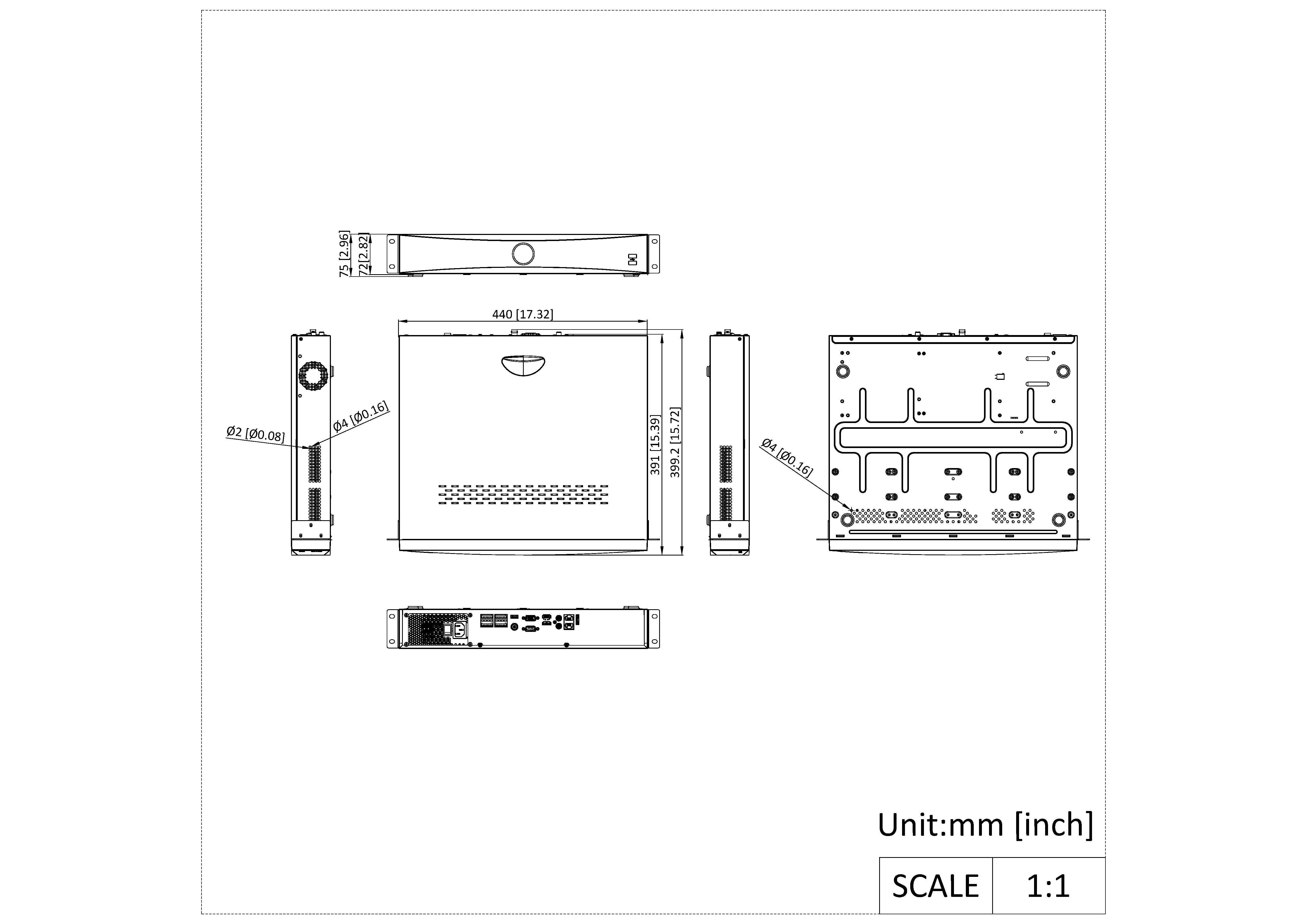

• Dimensions: 440 × 391 × 72 mm (17.32 × 15.39 × 2.82 inch)
