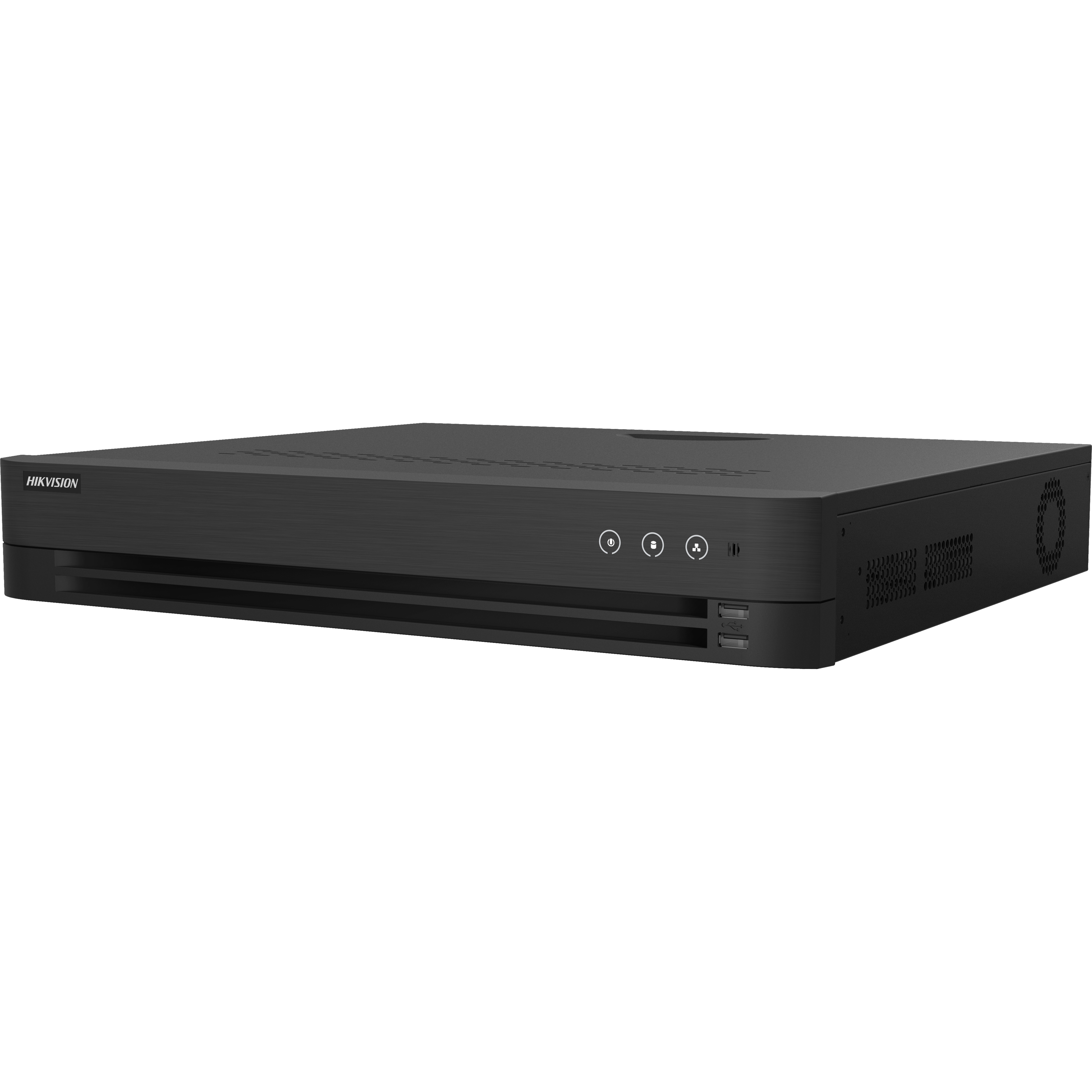

Hikvision DS-7716NI-Q4(C) 16-Channel 4-SATA NVR | 16-ch IP | 160 Mbps Incoming | 4 SATA | Up to 8TB per HDD | 4K HDMI

Hikvision 16-ch 1.5U 4K NVR. Up to 16-ch IP camera inputs; H.265+/H.265/H.264+/H.264 video formats; up to 1-ch @ 8MP or 2-ch @ 4MP or 6-ch @ 1080P decoding capacity.

Key Specifications

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 2-ch @ 4MP or 6-ch @ 1080P decoding capacity
• 1 HDMI and 1 VGA interfaces: simultaneous video output
• Up to 160 Mbps incoming bandwidth
• 4 HDDs for continuous video recording
• IP video input: 16-ch Up to 8 MP resolution
• Incoming bandwidth: 160 Mbps
• Outgoing bandwidth: 80 Mbps
• HDMI output: 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Output mode: HDMI/VGA simultaneous output
• Recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Decoding capability: 1-ch@8 MP (30 fps)/6-ch@1080p (30 fps)
• Synchronous playback: 16-ch
• Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
• Network interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• SATA: 4, SATA interface
• HDD capacity: Up to 8 TB capacity for each disk
• Alarm in/out: 16/4
• USB: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 2.0
• Power supply: 100 to 240 VAC, 50 to 60 Hz
• Power consumption: ≤ 15 W (without HDD)

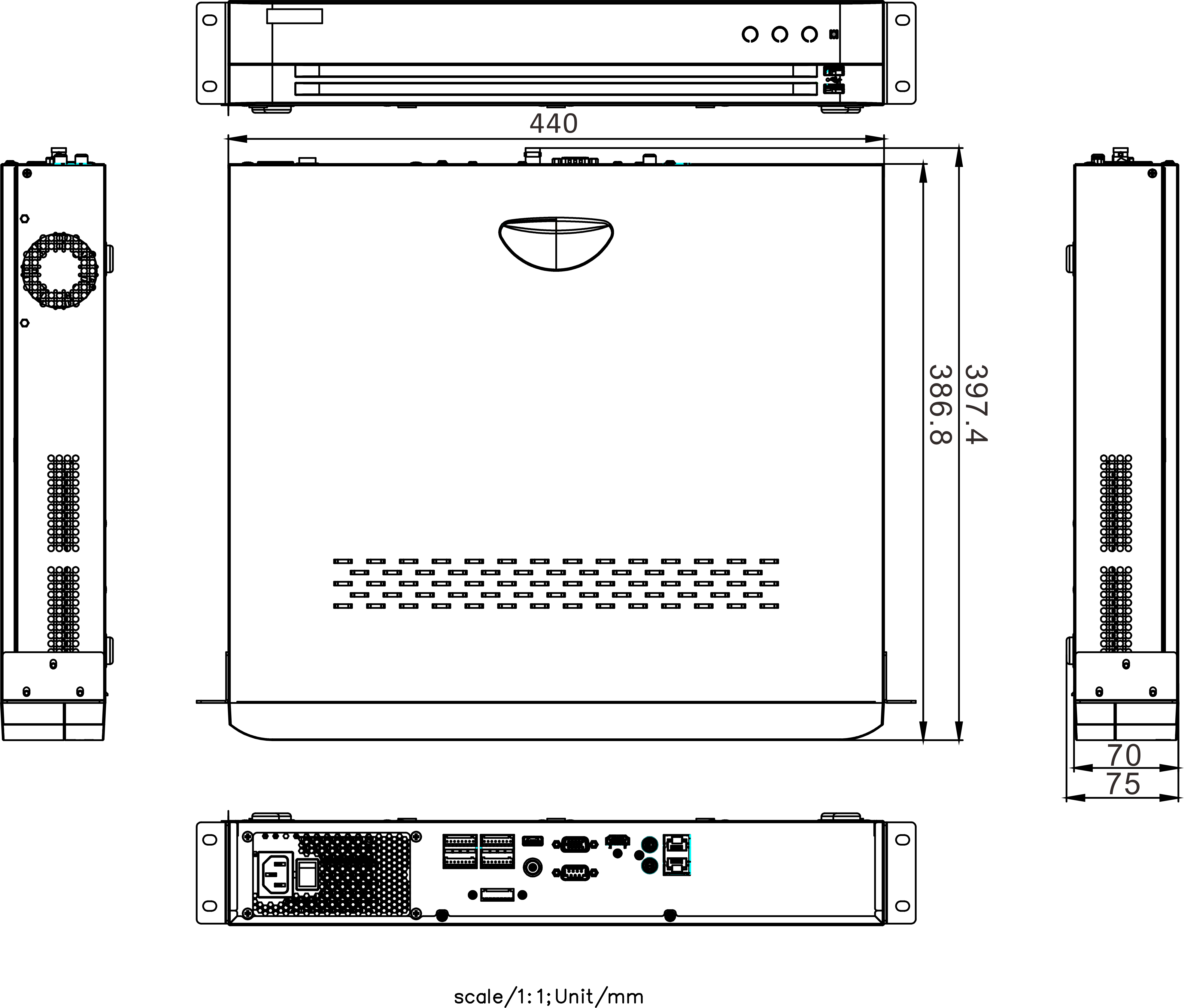

• Dimensions: 440 × 397 × 75 mm (17.3" × 15.6" × 3.0")
