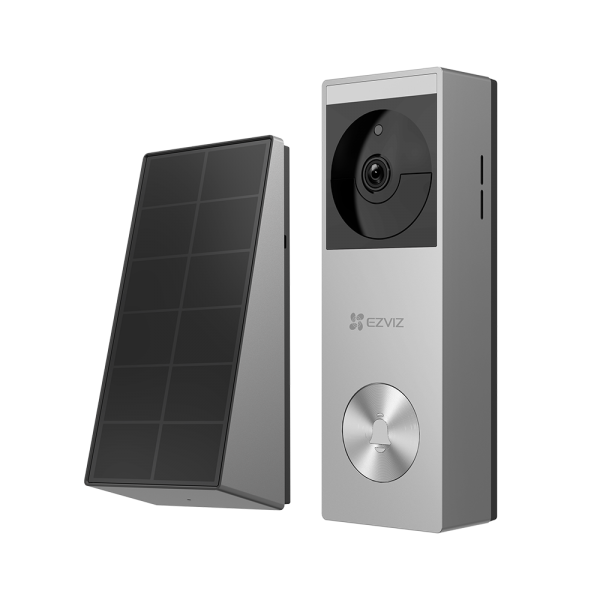

EZVIZ HP3 Pro 3MP Video Doorbell Doorviewer

Battery video doorbell / door viewer with 2K video, 162° ultra-wide view, AI human detection and built-in 32 GB storage.

Key features

• 2K (2048 × 1296) video, 162° diagonal view
• 5,200 mAh rechargeable battery; wired or solar options
• AI human shape detection, PIR sensing up to 5 m
• Two-way talk; electronic doorbell
• Built-in 32 GB eMMC storage
• IP65; tamper alarm

Key Specifications

• Model: CS-HP3 Pro

Video Doorbell — Camera Parameters

• Image Sensor: 1/2.8" Progressive Scan CMOS (Supports low light sensitivity)
• Lens: 2.3mm@F 2.2, diagonal field of view 162°
• Day & Night: ICR infrared filter type ( Max: 6 meters)

Video Parameters

• Max Resolution: 2K (2048 × 1296)
• DNR: 2D / 3D DNR
• Video Compression: H.265 / H.264

PIR Sensor

• Sensing Angle: 120°
• Sensing Distance: Max. 5 m (16.4 ft)

Interface

• Audio Input: Built-in high-sensitivity microphone
• Audio Output: Built-in high-power speaker
• Button: Doorbell button with electronic doorbell

Network Parameters — Function

• Intelligent Alarm: AI-powered human shape detection
• Tamper Alarm: Sound and light anti-dismantling alarm (Supports sending alerts to the smartphone)
• Video Intercom: Two-Way talk

Wi-Fi Parameters

• Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz

Storage

• Local Storage: Built-in 32GB eMMC
• Cloud Storage: EZVIZ CloudPlay storage

General

• Operation Conditions: -20°C to 50°C, humidity 95% or less (non-condensing)
• IP Grade: IP65

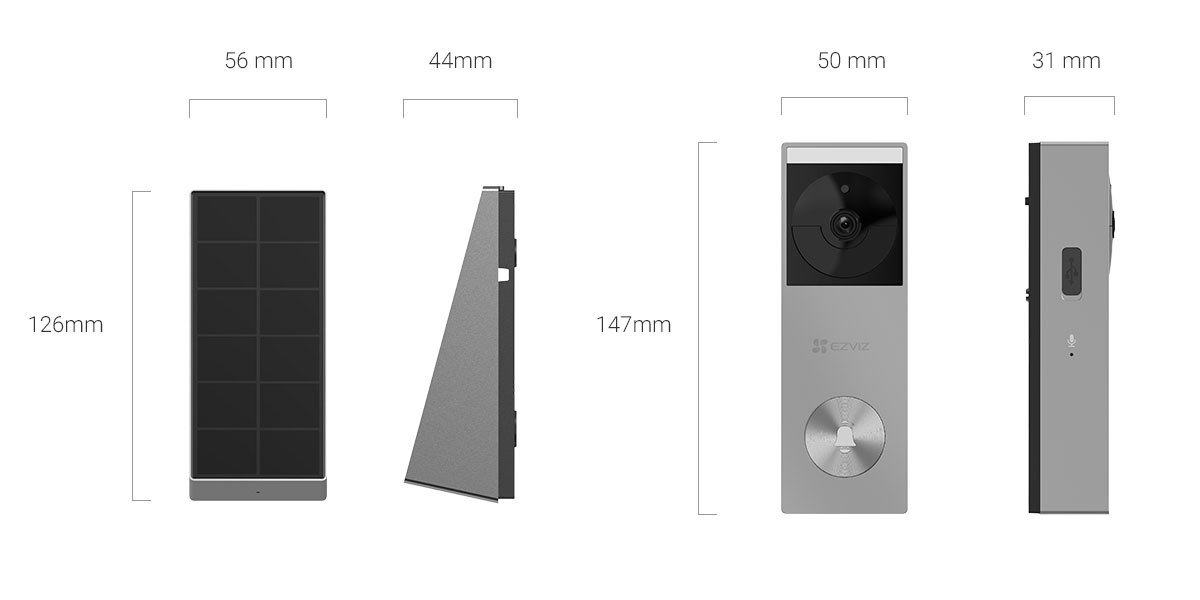

• Size: 50 × 31× 147 mm
• Battery Capacity: 5200 mAh rechargeable lithium battery
• Power Supply: 8-24VAC, type-C:5V(+-10%), EZVIZ Doorbell Solar Panel
• Power Consumption: 3W MAX

Solar Panel — Performance Parameter

• Max. Power Voltage: 8.1V
• Max. Power Current: 240mA
• Max. Power: 1.2W
• Operating Temperature: -20 °C -50 °C
• Size: 126 × 56 × 44 mm (4.96 × 2.20 × 1.73 inch)

General

• Net Weight: 250 g
• Weight with Package: 613 g
• In the box: Battery Doorbell
• Certifications: CE / REACH / WEEE / RoHS
