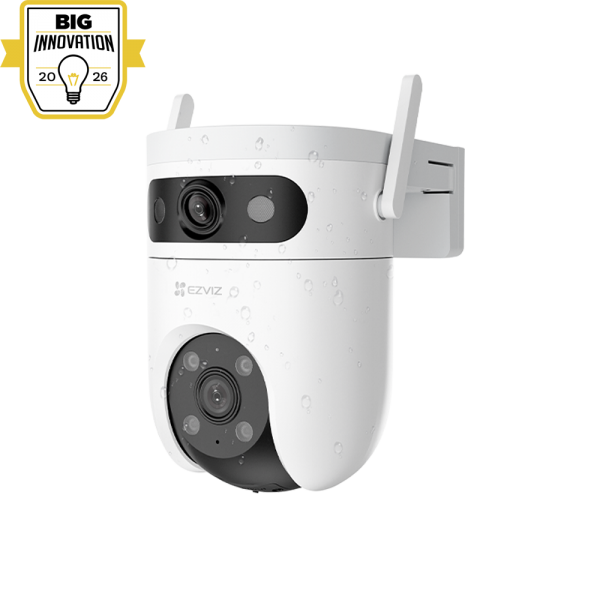

EZVIZ H9c Dual-Lens 3K 4G-WiFi Outdoor Camera

Dual-lens 3K outdoor camera with 4G LTE and dual-band Wi-Fi: works on a nano-SIM where there's no Wi-Fi, with co-detection tracking.

Key features

• Dual 3K lenses: fixed wide + pan-tilt
• 4G LTE (nano-SIM) and Wi-Fi 6 dual-band
• Co-detection auto tracking, patrol mode
• AI person & vehicle detection
• Colour night vision up to 40 m; siren + strobe
• Weatherproof; microSD up to 512 GB

Key Specifications

• Model: CS-H9c-R105-8H55WFL4GA / CS-H9c (5MP+5MP,4G)

Camera

• Image Sensor: 1/3” Progressive Scan CMOS
• Lens: Top Lens: 2.8mm@ F1.6, viewing angle: Diagonal 110°, Horizontal 96°, Vertical 54°;Bottom Lens: 6mm@F1.6, viewing angle: Diagonal 60°, Horizontal 52°, Vertical 28°
• PT Angle: Top Lens:0~240°Pan (Manual adjustment) &15° Preset Fixed Tilt AngleBottom Lens: Pan: 350°, Tilt: 80°
• Minimum Illumination: 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
• Day & Night: IR-cut filter with auto switch
• DNR: 3D DNR
• WDR: Digital WDR
• Color Night Vision: Up to 40 m

Video & Audio

• Max. Resolution: 3K (2880 × 1620)
• Video Compression: H.265 / H.264

Network

• Wi-Fi Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
• Frequency Range: 2.4 GHz ~ 2.4835 GHz, 5150MHz-5250MHz, 5250MHz-5350MHz, 5470MHz-5725MHz
• Wired Network: RJ45 × 1(10M / 100M Adaptive Ethernet Port)
• 4G Frequency Bands: EU LTE-FDD：B1/B3/B5/B7/B8/B20/B28;LA LTE-FDD：B2/B3/B4/B5/B7/B8/B28/B66

Function

• Smart Alarm: AI-powered human / vehicle shape detection, motion detection
• PT Function: Co-detection for auto tracking / One-tap control for linked view change / preset points / patrol mode
• Customized Alert Area: Supports
• Two-Way Talk: Supports
• Preset Locations: Supports

Storage

• Local Storage: Supports microSD card (max. 512 GB)
• Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)

General

• Operating Conditions: -30°C to 50°C ( -22°F to 122 °F ) humidity 95% or less (non-condensing)
• IP Grade: Weatherproof design
• Power Supply: DC 12 V / 1.5 A
• Power Consumption: Max. 18 W

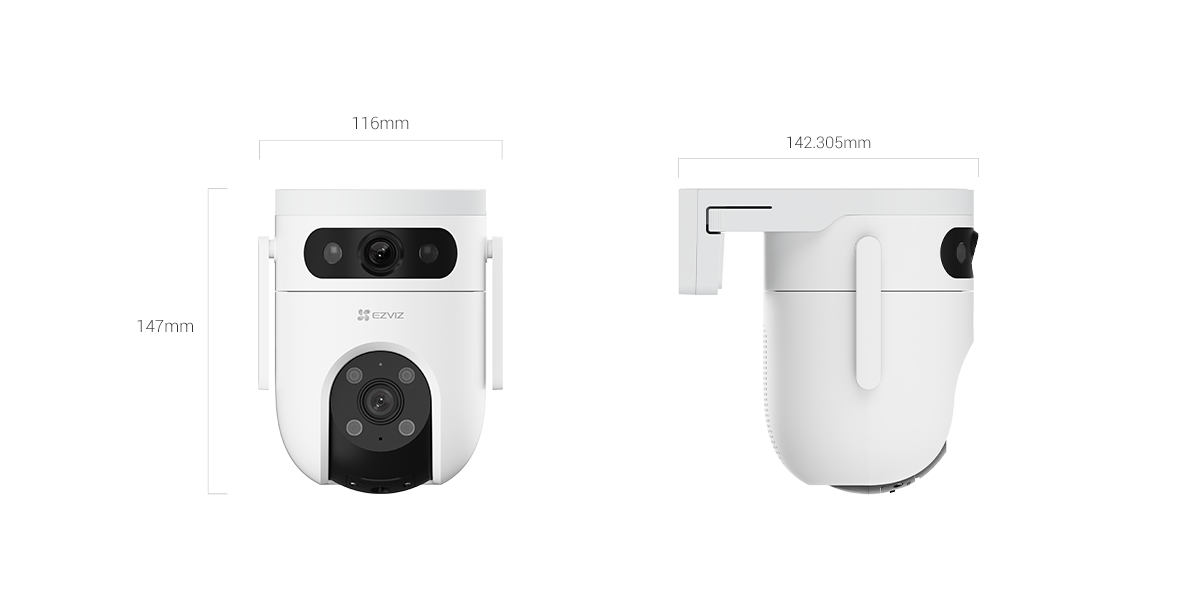

• Dimensions: 147 × 116 × 142 mm (5.71 × 4.57 × 5.59 inch)
• Weight: Net weight: 627.3 gWith package: 970.4 g
• In the box: H9c Dual 4G Camera
• Certifications: CE / UL / WEEE / RoHS / REACH
